Knocknoc

v0.2.0

Knocknoc middleware for Traefik

This is a Traefik middleware that lets a request through only if the caller's IP is on the allowlist (EDL) published by Knocknoc.

Knocknoc grants network access just-in-time: when a user authenticates, their current source IP is stored in an allowlist until their session ends, or their access is revoked. Knocknoc exposes that allowlist as an EDL (External Dynamic List). This plugin polls that EDL and only allows http requests through Traefik from Knocknoc authenticated users.

How it works

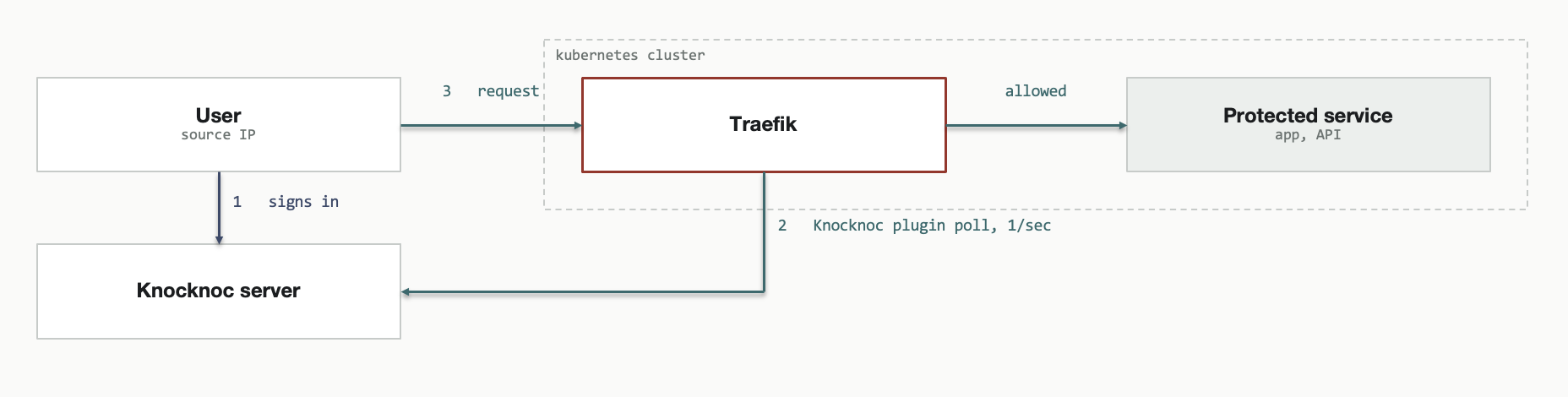

Poll the Knocknoc server directly. The plugin fetches the EDL straight from your Knocknoc server, or from a Knocknoc Agent caching the EDL.

Traefik polling the Knocknoc server directly

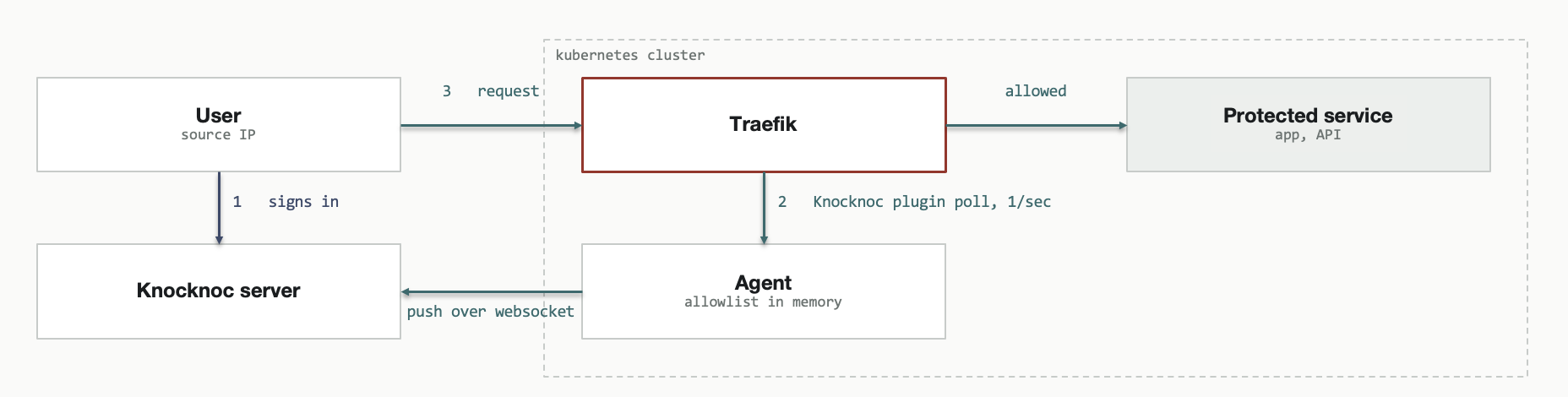

Poll a local Knocknoc agent. An agent running alongside Traefik in-cluster caches the allowlist, and receives updates from the server. The plugin polls the agent instead, which removes the network delay associated with a round trip to the Knocknoc Server.

Traefik polling a local Knocknoc agent

Either way the plugin configuration is the same. Interested in the agent-based setup? Get in touch.

Installation

Add the plugin to Traefik's static configuration:

experimental:
  plugins:
    knocknoc:
      moduleName: github.com/knocknoc-io/traefik-plugin-knocknoc
      version: v0.2.0

Usage

Declare a middleware in the dynamic configuration and attach it to a router.

http:
  routers:
    my-app:
      rule: Host(`app.example.com`)
      service: my-app
      middlewares:
        - knocknoc

  middlewares:
    knocknoc:
      plugin:
        knocknoc:
          sourceURL: https://knocknoc.example.com/edl/<your-edl-uuid>
          username: apiuser
          secret: "{{ env `KNOCKNOC_SECRET` }}"
          pollInterval: 1s

Docker labels

labels:
  - "traefik.http.routers.my-app.middlewares=knocknoc"
  - "traefik.http.middlewares.knocknoc.plugin.knocknoc.sourceURL=https://knocknoc.example.com/edl/<your-edl-uuid>"
  - "traefik.http.middlewares.knocknoc.plugin.knocknoc.username=traefik"
  - "traefik.http.middlewares.knocknoc.plugin.knocknoc.secret=your-secret"
  - "traefik.http.middlewares.knocknoc.plugin.knocknoc.pollInterval=1s"

Kubernetes CRD

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: knocknoc
spec:
  plugin:
    knocknoc:
      sourceURL: https://knocknoc.example.com/edl/<your-edl-uuid>
      username: traefik
      secret: your-secret
      pollInterval: 1s

Configuration

sourceURL is the only required option.

Option	Type	Default	Description
`sourceURL`	string	—	Required. URL of the Knocknoc EDL. Must not embed credentials in its userinfo — use `username` and `secret`.
`username`	string	`""`	HTTP basic auth username. When empty, no `Authorization` header is sent.
`secret`	string	`""`	HTTP basic auth password. Setting it without a `username` is a configuration error.
`pollInterval`	duration	`2s`	How long a fetched allowlist is reused before the next fetch. Minimum `1s`.
`requestTimeout`	duration	`5s`	Timeout for a single fetch. `0` disables the timeout entirely.
`rejectStatusCode`	int	`403`	Status returned to a caller that is not on the allowlist. Must be 4xx or 5xx.
`rejectBody`	string	`""`	Response body served to a rejected caller. When empty, a plain `Forbidden` is returned.
`rejectContentType`	string	`text/html; charset=utf-8`	Content type for `rejectBody`. Setting it without a `rejectBody` is a configuration error.
`insecureSkipVerify`	bool	`false`	Skip TLS verification when fetching the EDL. For testing against a self-signed server only.
`ipStrategy.depth`	int	`0`	Which `X-Forwarded-For` entry identifies the caller. `0` uses the TCP remote address.
`ipStrategy.excludedIPs`	[]string	`[]`	IPs or CIDR blocks removed from `X-Forwarded-For` before `depth` is applied.

Durations use Go syntax (500ms, 1s, 2m). Invalid values are rejected on startup.

Identifying the caller

By default the plugin uses the TCP remote address and ignores X-Forwarded-For. If Traefik is behind a load balancer or CDN, set depth to pick an entry from that header, counting from the right.

Given X-Forwarded-For: 203.0.113.7, 198.51.100.4, 10.0.0.5:

Setting	Selected IP
`depth: 0` (default)	the TCP remote address
`depth: 1`	`10.0.0.5`
`depth: 2`	`198.51.100.4`
`depth: 3`	`203.0.113.7`

excludedIPs drops matching entries before depth is counted, keeping depth consistent when a variable number of trusted proxies append themselves.

Only set depth if every hop in front of Traefik is trusted to rewrite X-Forwarded-For. Otherwise a caller can present any IP they like.

Custom rejection page

rejectBody: |
  <!doctype html>
  <html><body><h1>Access denied</h1></body></html>

Served verbatim with X-Content-Type-Options: nosniff. There is no templating. For an API, set rejectContentType: application/json.

A rejected caller therefore gets exactly:

HTTP/1.1 403 Forbidden
Content-Type: text/html; charset=utf-8
Content-Length: 4396
X-Content-Type-Options: nosniff

Redirecting rejected users to Knocknoc

Because you can set the deny page HTML, you can unauthenticated users to your Knocknoc login portal and have them returned to the protected URL once access is granted. This way an unauthenticated user who hits the service gets bounced through sign-in instead of hitting a dead end. See Redirecting Users.

The example below renders a branded 403 which can redirect the user to your Knocknoc login page (uncomment the script section).

Branded 403 page with redirect to the Knocknoc login

http:
  middlewares:
    knocknoc:
      plugin:
        knocknoc:
          sourceURL: https://knocknoc.example.com/edl/<your-edl-uuid>
          username: traefik
          secret: "{{ env `KNOCKNOC_SECRET` }}"
          pollInterval: 1s
          rejectBody: |
            <!DOCTYPE html>
            <html lang="en">
            <head>
                    <meta charset="UTF-8">
                    <meta name="viewport" content="width=device-width, initial-scale=1.0">
                    <title>Forbidden</title>
                    <link rel="preconnect" href="https://fonts.googleapis.com">
                    <link rel="preconnect" href="https://fonts.gstatic.com" crossorigin>
                    <link href="https://fonts.googleapis.com/css2?family=Raleway:ital,wght@0,100..900;1,100..900&display=swap" rel="stylesheet">
                    <style>
                            body {
                                    text-align: center;
                                    background-color: #171717;
                                    color: #ffffff;
                            }
                            .container {
                                    margin: 60px 0;
                                    padding: 60px;
                            }
                            h1 {
                                    font-family: "Raleway", sans-serif;
                                    font-optical-sizing: auto;
                                    font-size: 4em;
                                    font-weight: 300;
                                    font-style: normal;
                            }
                            span {
                                    color: #35b59b;
                            }
                    </style>
            </head>
            <body>
                    <div class="container">
                            <h1>Access Denied.</h1>
                            <h1>You must <span>Knoc</span> before you enter.</h1>
                    </div>

                    <svg id="Layer_1" data-name="Layer 1" xmlns="http://www.w3.org/2000/svg" width="300" height="300" viewBox="0 0 166.57 156.56">
                            <defs>
                                    <style>
                                            .cls-1 {
                                                    fill: none;
                                            }
                                            .cls-1, .cls-2 {
                                                    stroke-width: 0px;
                                            }
                                            .cls-2 {
                                                    fill: #35b59b;
                                            }
                                    </style>
                            </defs>
                            <g id="Layer_1-2" data-name="Layer 1">
                                    <path class="cls-2" d="M166.57,119.18c0,4-2.29,5.09-5,6.28l-103.5,31.1L0,126.1l86-17.7c.36-.16.73-.3,1.11-.41,3.26-.87,4.2-.65,8.58,1l42,17.66.14-117.91L90.75.81V.24l75.77-.24.05,119.18Z"/>
                                    <line class="cls-1" x1="55.63" y1="32.13" x2="41.78" y2="18.28"/>
                                    <rect class="cls-2" x="44.57" y="15.4" width="8.27" height="19.59" transform="translate(-3.55 41.82) rotate(-45)"/>
                                    <rect class="cls-2" x="29.03" y="46.02" width="18.27" height="8.27"/>
                                    <line class="cls-1" x1="54.19" y1="67.14" x2="40.34" y2="79.15"/>
                                    <rect class="cls-2" x="38.1" y="69.01" width="18.34" height="8.27" transform="translate(-36.37 48.85) rotate(-40.93)"/>
                            </g>
                    </svg>

                    <!-- If this Javascript is uncommented, it will redirect this 403 Forbidden page to the Knocknoc user portal login, which can then redirect back to the protected website once access is granted. -->
                    <!-- <script>
                            const baseUrl = '<<INSERT KNOCKNOC USER LOGIN PORTAL URL, eg: knocknoc.mycompany.com>>';
                            // Milliseconds to wait before redirecting. Set to 0 for an instant redirect.
                            const REDIRECT_DELAY_MS = 3000;

                            setTimeout(() => {
                                    const currentUrl = document.URL;
                                    if (!currentUrl || !baseUrl) return;

                                    try {
                                            // Add http:// or https:// if it doesn't already have a scheme
                                            let normalizedBase = baseUrl.trim();
                                            if (!/^https?:\/\//i.test(normalizedBase)) {
                                                    normalizedBase = 'https://' + normalizedBase;
                                            }

                                            const encodedRef = encodeURIComponent(currentUrl);
                                            const redirectUrl = normalizedBase + '?referrer=' + encodedRef;

                                            const url = new URL(redirectUrl);
                                            window.location.href = url.toString();
                                    } catch (err) {
                                            console.error('Invalid redirect URL:', err);
                                    }
                            }, REDIRECT_DELAY_MS);
                    </script> -->

            </body>
            </html>

Behaviour

A failed refresh keeps the previous allowlist, so a brief Knocknoc outage does not lock out users who were already allowed.
Staleness is bounded by pollInterval. A user whose session just ended may still be admitted for up to that long.
Refreshes are lazy and shared. There will be one fetch per pollInterval, only when traffic arrives.

Development

make    # lint, test, and run the tests under the Yaegi interpreter

License

MIT
